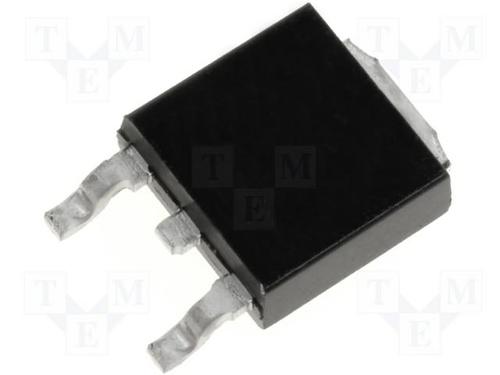

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**N-Channel Power MOSFET 40A to 49A, Infineon**
The Infineon range of diskrete HEXFET® power MOSFETs includes N-channel devices in surface mount and leaded packages. And form factors that can address almost any board layout and thermal design challenge. Across the range benchmark on resistance drives down conduction losses, allowing designers to deliver optimum system efficiency.

Show

IRLR3715ZPBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	20.0 V
Current Rating	49.0 A
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	15.5 mΩ
Polarity	N-Channel
Power Dissipation	40 W
Part Family	IRLR3715Z
Threshold Voltage	2.1 V
Input Capacitance	810pF @10V
Drain to Source Voltage (Vds)	20 V
Breakdown Voltage (Drain to Source)	20.0 V
Continuous Drain Current (Ids)	49.0 A
Rise Time	13.0 ns
Input Capacitance (Ciss)	810pF @10V(Vds)
Input Power (Max)	40 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	6.73 mm
Size-Height	2.26 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
