Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 7 Pin |

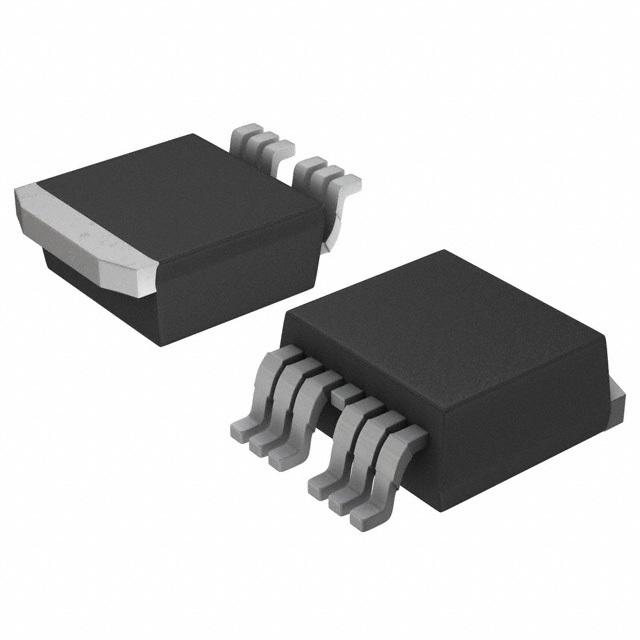

Case/Package | TO-263-7 |
Number of Positions | 7 Position |
Drain to Source Resistance (on) (Rds) | 0.001 Ω |
Polarity | N-CH |
Power Dissipation | 380 W |
Threshold Voltage | 2.5 V |
Input Capacitance | 10990 pF |
Drain to Source Voltage (Vds) | 40 V |
Continuous Drain Current (Ids) | 380A |
Rise Time | 590 ns |
Input Capacitance (Ciss) | 10990pF @40V(Vds) |
Fall Time | 200 ns |
Operating Temperature (Max) | 175 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 380W (Tc) |
Show | |
Size-Length | 10.67 mm |
Material | Silicon |
Operating Temperature | -55℃ ~ 175℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | Compliant with Exemption |
Lead-Free Status | Lead Free |
