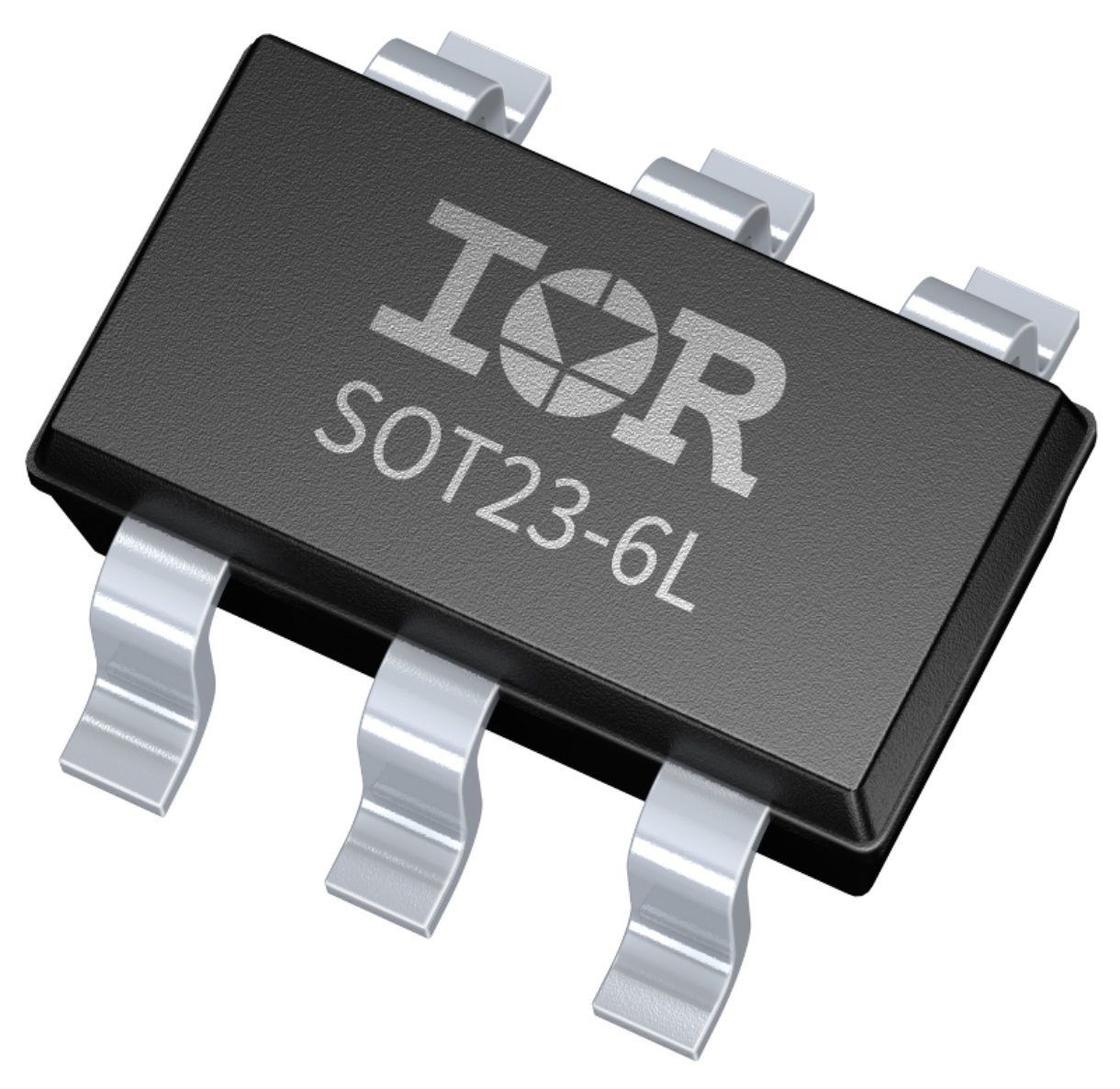

- IRS20752LTRPBF - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC5093143
-
Category:FET Driver
-
Package:SOT-23-6
-
Datasheet:Datasheet 3D Model
-
Description:Infineon IRS20752LTRPBF, MOSFET Power Driver, 240mA, 10 → 18V, Inverting, 6Pin SOT-23
-
Stock Locations:
-
Availability:277 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 15.75
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Floating gate driver designed for bootstrap operation
- Fully operational to +200 V
- Fully operational to +600 V (IRS25752L Fully operational to +100 V (IRS10752L ) option available
- Excellent dv/dt immunity
- Excellent negative VS transient immunity
- Wide VCC range
- U VLO on low-side and high-side
- Schmitt-trigger input with internal pull-down
- Output in phase with input
IRS20752LTRPBF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Rise/Fall Time | 85ns, 40ns |
| Number of Outputs | 1 Output |
| Number of Positions | 6 Position |
| Power Dissipation | 828 mW |
| Quiescent Current | 100 µA |
| Rise Time | 85 ns |
| Input Bias Current | 40 µA |
| Fall Time | 40 ns |
| Fall Time (Max) | 40 ns |
| Fall Time (Max) | 85 ns |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 828 mW |
| Supply Voltage | 10V ~ 18V |
| Supply Voltage (Max) | 18 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.6 mm |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
