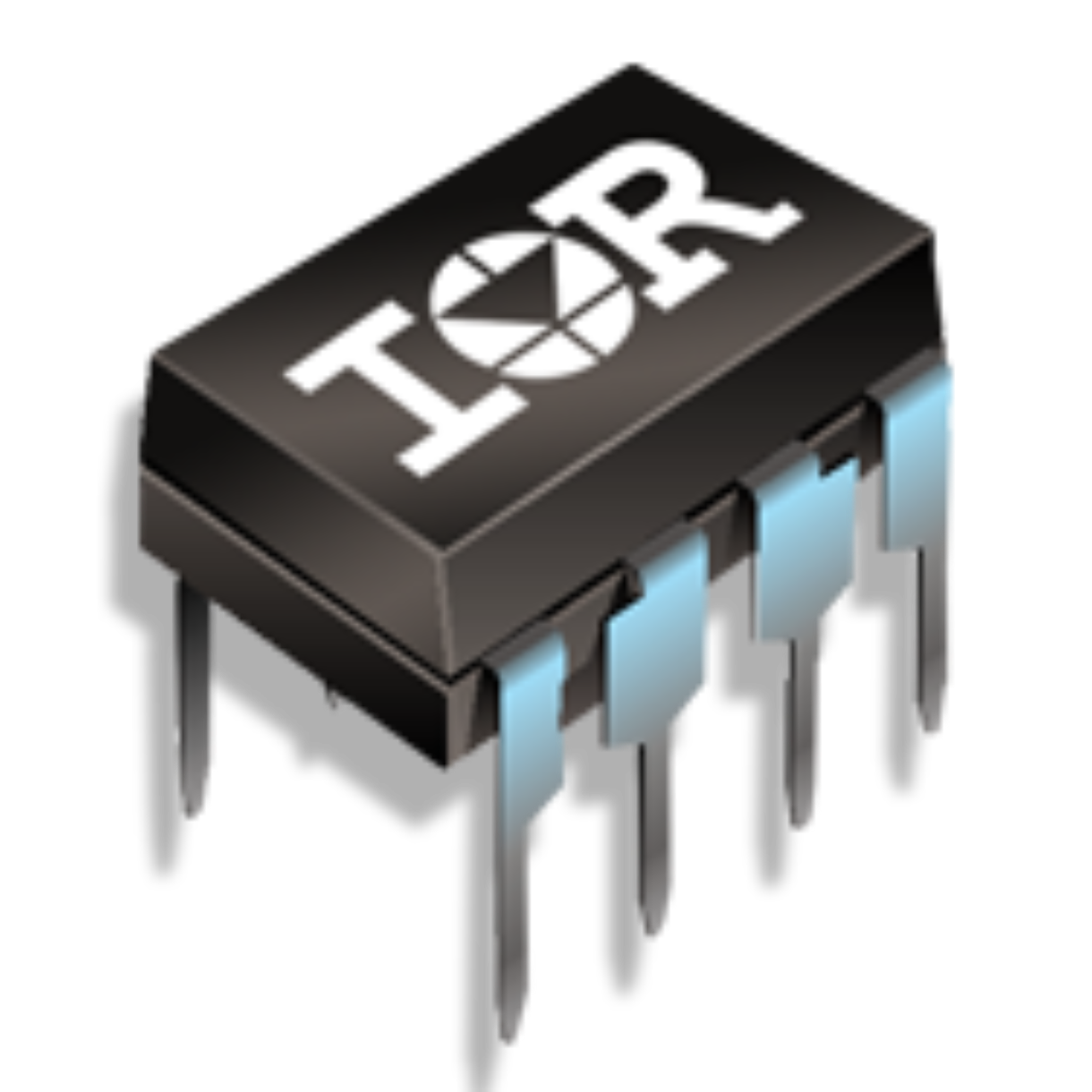

Image is for your reference only,please check specifications for details
- IRS2108 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429176536
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:ИС драйвера полумоста на 600 В с типовыми токами источника 0,29 А и стока 0,6 А в корпусе PDIP с 8 выводами для IGBT и MOSFET. Также доступна в 8-выводном SOIC, 14-выводном SOIC (IRS21084S) и 14-выводном PDIP (IRS21084).
-
Stock Locations:
-
Availability:244 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Краткий обзор характеристик:
- Плавающий драйвер затвора, предназначенный для работы с бутстрепной схемой
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям, нечувствителен к dV/dt
- Диапазон напряжения питания драйвера затвора от 10 В до 20 В
- Блокировка при пониженном напряжении для обоих каналов
- Совместимость с логическими уровнями 3,3 В, 5 В и 15 В
- Логика предотвращения сквозных токов
- Согласованная задержка распространения для обоих каналов
- Выход верхнего плеча синфазен со входом HIN
- Выход нижнего плеча противофазен со входом LIN
- Смещение между логической и силовой землей +/- 5 В
- Внутренняя мертвая зона 540 нс
- Драйвер затвора с пониженным di/dt для лучшей помехоустойчивости
IRS2108 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-8 |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
