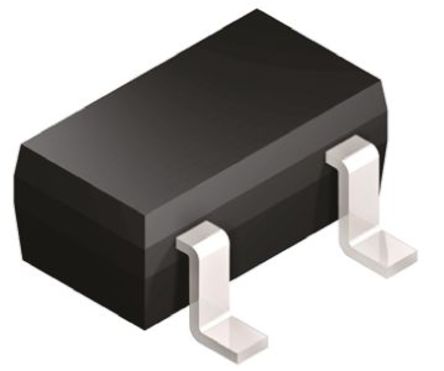

Image is for your reference only,please check specifications for details

PACDN042Y3R - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1685100
Category:
TVS Diode
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR PACDN042Y3R ESD Protection Device, 8V, SOT-23, 3Pins, 6.1V, 225mW
Stock Locations:
Availability:
1,429 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.18

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Even low voltage discharges can cause damage to electronic components so get this tvs PACDN042Y3R ESD protection device from ON Semiconductor for added protection. This ESD diode has a maximum ESD protection device voltage of ±20(Min)@Contact Disc/±30(Min)@HBM kV. This device"s maximum clamping voltage is 8 V. This ESD diode has a minimum operating temperature of -40 °C and a maximum of 85 °C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a dual common anode configuration. Its capacitance value is 30(Typ) pF.

Show

PACDN042Y3R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Operating Voltage	6.1 V
Capacitance	30 pF
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Power Dissipation	225 mW
Clamping Voltage	8 V
Peak Pulse Power	0.22 W
Min Breakdown Voltage	6.2 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	225 mW
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	0.94 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
