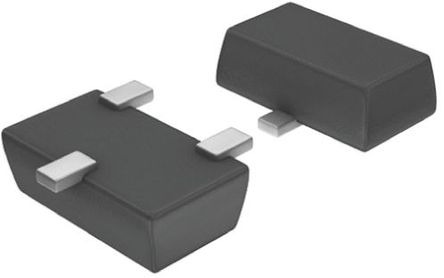

TPD2EUSB30ADRTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC545617
Category:
TVS Diode
Package:
SOT-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPD2EUSB30ADRTR USB Interface, Full Speed USB, USB 3.0, 2.5V, SOT, 3Pins
Stock Locations:
Availability:
156 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD2EUSB30ADRTR is a two-channel ESD/Surge Solution for high speed and low voltage interface. It is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (contact). It also offers 5A (8/20µs) peak pulse current ratings per IEC 61000-4-5 (surge) specification. It also offers low 4.5V DC break-down voltage. The low capacitance, low break-down voltage and low dynamic resistance make the TPD2EUSB30A a superior protection device for high-speed differential IOs.
Supports USB 3.0 data rates (5Gbps)
IEC 61000-4-2 ESD Protection (level 4 contact)
IEC 61000-4-5 Surge protection
Low capacitance
0.6R Typical dynamic resistance
Flow-through pin mapping
Green product and no Sb/Br
Device has limited built-in ESD protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPD2EUSB30ADRTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-3
Supply Voltage (DC)	2.50V (max)
Operating Voltage	3.6 V
Capacitance	0.8 pF
Breakdown Voltage	4.5 V
Number of Channels	2 Channel
Number of Positions	3 Position
Power Dissipation	45 W
Data Rate	6.00 Gbps
Clamping Voltage	8 V
Test Current	1 mA
Peak Pulse Power	45 W
Min Breakdown Voltage	4.5 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	2.5 V
	Show
Size-Length	1.05 mm
Size-Width	0.85 mm
Size-Height	0.45 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
