Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 8 Pin |

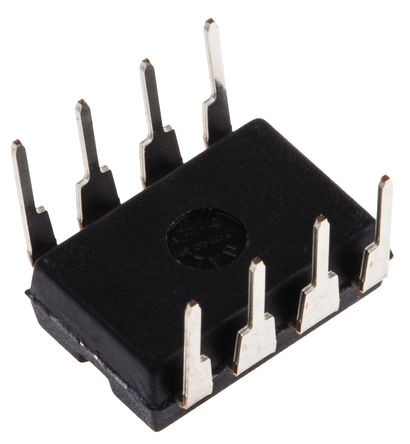

Case/Package | PDIP-8 |
Supply Voltage (DC) | 15.0 V |
Supply Current | 700 µA |
Number of Circuits | 1 Circuit |
Number of Channels | 1 Channel |
Number of Positions | 8 Position |
Common Mode Rejection Ratio | 130 dB |
Quiescent Current | 700 µA |
Bandwidth | 1.3 MHz |
Slew Rate | 4.00 V/μs |
Gain Bandwidth Product | 1.3 MHz |
Gain | 10.0 kdB |
Input Offset Voltage | 50 µV |
Input Bias Current | 2 nA |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
3dB Bandwidth | 1.3 MHz |
Minimum CMRR Range | 80 dB |
Supply Voltage (Max) | 30V ~ 50V |
Show | |
Size-Length | 9.81 mm |
Size-Width | 6.35 mm |
Size-Height | 4.57 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
