Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 8 Pin |

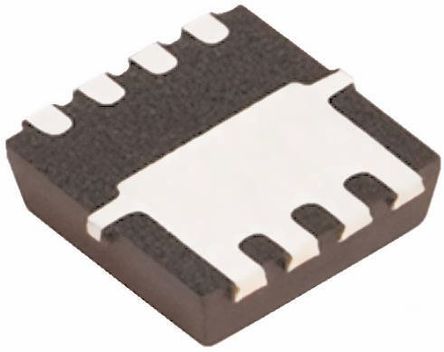

Case/Package | Power-33 |
Number of Positions | 8 Position |
Drain to Source Resistance (on) (Rds) | 0.015 Ω |
Polarity | P-Channel |
Power Dissipation | 31 W |
Drain to Source Voltage (Vds) | 30 V |
Continuous Drain Current (Ids) | 8.5A |
Rise Time | 6 ns |
Input Capacitance (Ciss) | 2045pF @15V(Vds) |
Input Power (Max) | 2.3 W |
Fall Time | 20 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | -55 ℃ |
Power Dissipation (Max) | 2.3W (Ta), 31W (Tc) |
Show | |
Size-Length | 3.3 mm |
Size-Width | 3.3 mm |
Size-Height | 0.75 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
