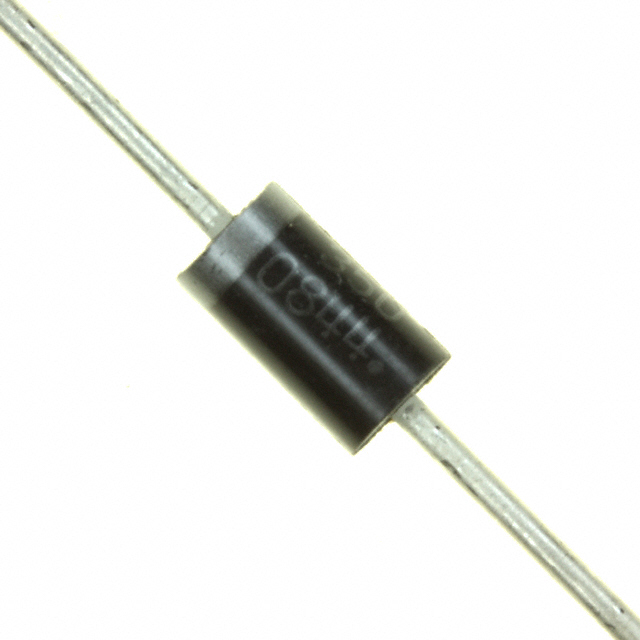

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SWITCHMODETM Power Rectifiers
These state−of−the−art devices are a series designed for use in switching power supplies, inverters and as free wheeling diodes.
Features
•Ultrafast 25 ns, 50 ns and 75 ns Recovery Times
•175°C Operating Junction Temperature
•Low Forward Voltage
•Low Leakage Current
•High Temperature Glass Passivated Junction
•Reverse Voltage to 600 V
•Shipped in Plastic Bags, 500 per Bag
•Available in Tape and Reel, 1500 per Reel, by Adding a “RL’’ Suffix
to the Part Number
•Pb−Free Packages are Available

Show

MUR460 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AA
Voltage Rating (DC)	600 V
Current Rating	4.00 A
Output Current	≤4.00 A
Load Current	3 A
Forward Voltage	1.28V @4A
Polarity	Standard
Reverse recovery time	75 ns
Max Repetitive Reverse Voltage (Vrrm)	600V
Forward Current	4 A
Max Forward Surge Current (Ifsm)	70 A
Max Reverse Leakage Current (Ir)	0.01mA
Maximum Forward Voltage (Max)	1.28 V
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	150 ℃
	Show
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Bulk
Minimum Packing Quantity	1000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/06/16
HK STC License	NLR
