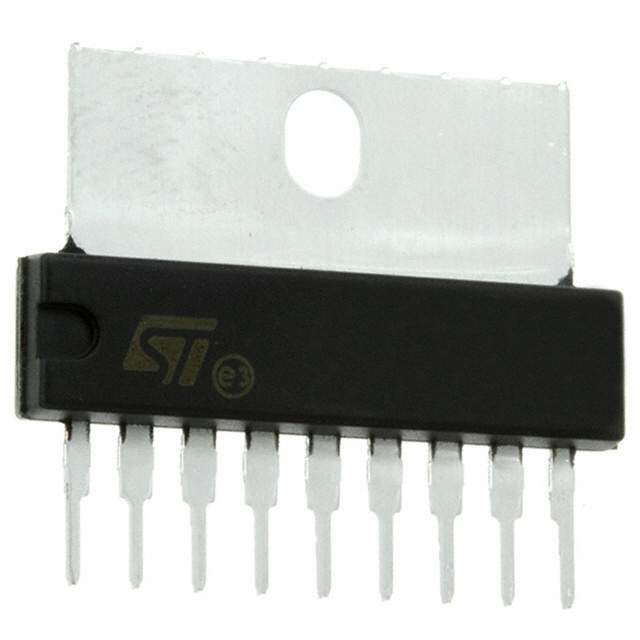

Image is for your reference only,please check specifications for details
- TDA2007A - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC104589303
-
Category:Audio Amplifier IC
-
Package:SIP-9
-
Datasheet:Datasheet 3D Model
-
Description:Audio Amp Speaker 2CH Stereo 6W Class-AB 9Pin(9+Tab) SIP Tube
-
Stock Locations:
-
Availability:10,058 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.12
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 6 + 6W STEREO AMPLIFIER
- DESCRIPTION
- The TDA2007A is a class AB dual Audio power amplifier assembled in single in line 9 pins package,
- specially designed for stereo application in music centers TV receivers and portable radios.
- .HIGH OUTPUT POWER
- .HIGH CURRENT CAPABILITY
- .AC SHORT CIRCUIT PROTECTION
- .THERMAL OVERLOAD PROTECTION
TDA2007A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 9 Pin |
| Case/Package | SIP-9 |
| Supply Voltage (DC) | 28.0 V |
| Output Voltage | 8.50 V |
| Supply Current | 3.00 A |
| Number of Circuits | 1 Circuit |
| Power Dissipation | 10000 mW |
| Quiescent Current | 50.0 mA |
| Output Power | 6.00 W |
| Output Current (Max) | 3500 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 10000 mW |
| Supply Voltage | 8V ~ 26V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
