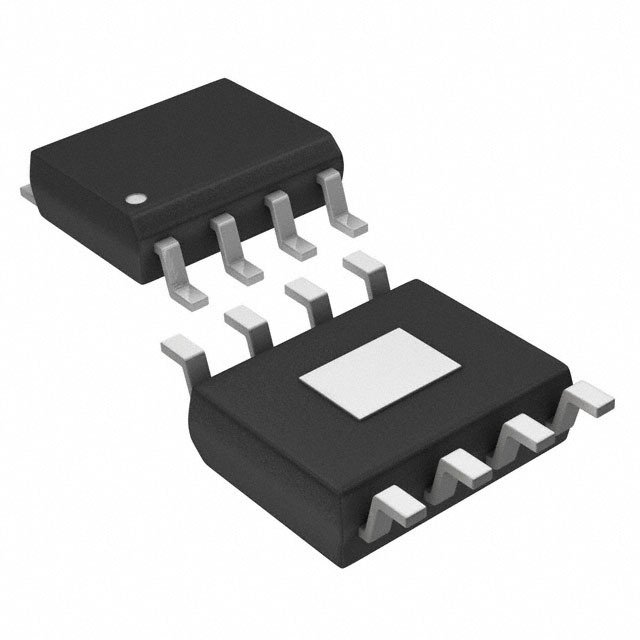

Image is for your reference only,please check specifications for details
- LMR14020SQDDARQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC12575736
-
Category:Voltage Regulator
-
Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4V to 40V Step Down Single-Out 0.8V to 28V 2A Automotive 8Pin HSOP EP T/R
-
Stock Locations:
-
Availability:239 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 24.99
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LMR14020-Q1 is a 40 V, 2 A step down regulator with an integrated high-side MOSFET. With a wide input range from 4 V to 40 V, its suitable for various applications from industrial to automotive for power conditioning from unregulated sources. An extended family is available in 3.5 A and 5 A options in pin-to-pin compatible packages, including LMR14030-Q1 and LMR14050-Q1. The regulators quiescent current is 40 µA in Sleep-mode, which is suitable for battery powered systems. An ultra-low 1 µA current in shutdown mode can further prolong battery life. A wide adjustable switching frequency range allows either efficiency or external component size to be optimized. Internal loop compensation means that the user is free from the tedious task of loop compensation design. This also minimizes the external components of the device. A precision enable input allows simplification of regulator control and system power sequencing. The device also has built-in protection features such as cycle-by-cycle current limit, thermal sensing and shutdown due to excessive power dissipation, and output overvoltage protection.
- The LMR14020-Q1 is available in an 8-pin HSOIC or 10-pin WSON package with exposed pad for low thermal resistance.
LMR14020SQDDARQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.8V ~ 28V |
| Output Current | 2 A |
| Quiescent Current | 40.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 200kHz ~ 2.5MHz |
| Switching Current | 3.15 A |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 4 V |
| Output Voltage (Max) | 28 V |
| Output Voltage (Min) | 0.8 V |
| Output Current (Max) | 2 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
