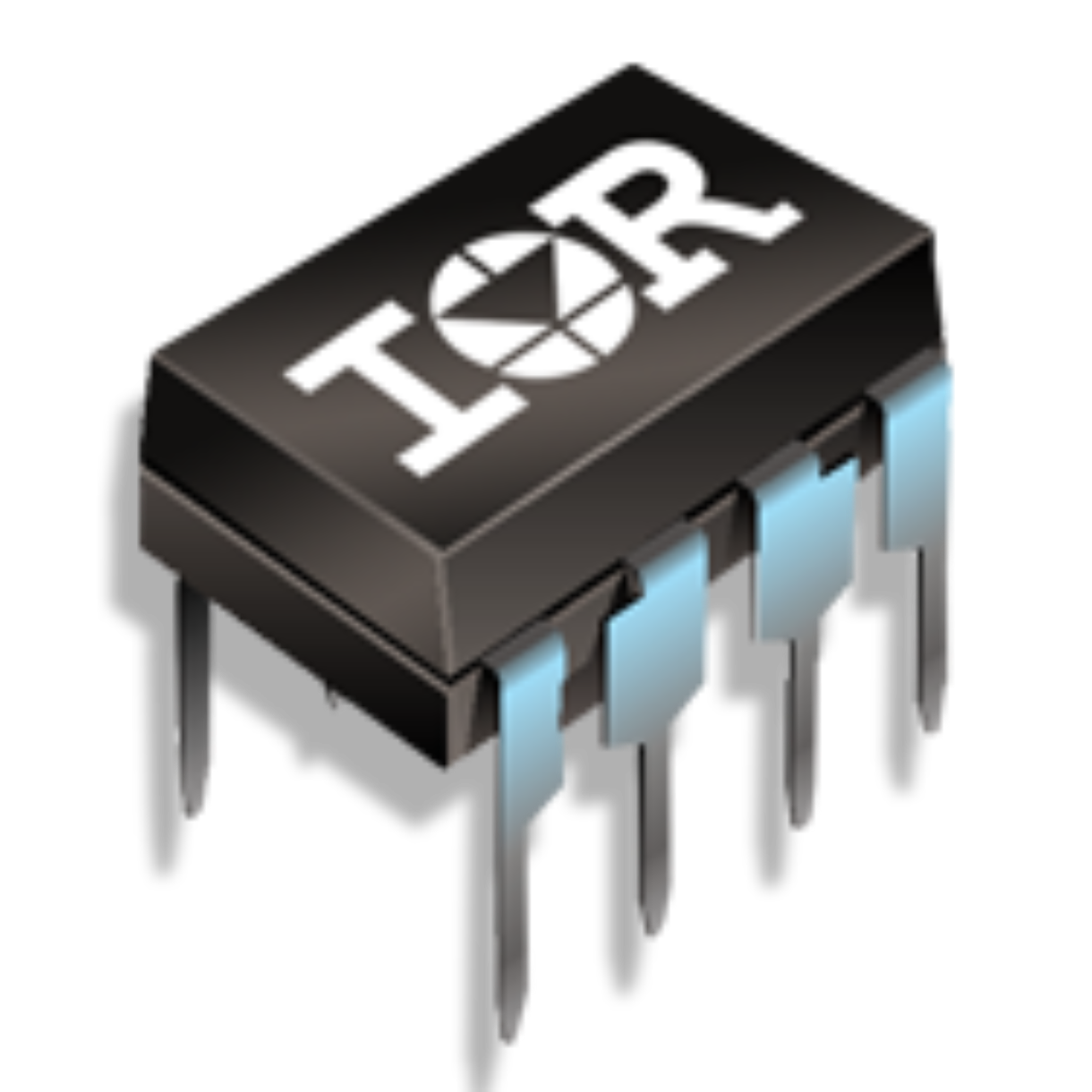

Image is for your reference only,please check specifications for details
- IRS2117 - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC429172410
-
Package:PDIP-8
-
Datasheet:Datasheet 3D Model
-
Description:Высоковольтный драйвер верхнего плеча 600В с типовыми токами источника 0.29А и стока 0.6А в корпусе PDIP с 8 выводами для IGBT и MOSFET. Также доступен в корпусе SOIC с 8 выводами.
-
Stock Locations:
-
Availability:311 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Сводка характеристик:
- Плавающий драйвер затвора, предназначенный для бутстрэп-режима
- Полностью работоспособен до +600 В
- Устойчив к отрицательным переходным напряжениям, нечувствителен к dV/dt
- Диапазон напряжения питания драйвера затвора: от 10 В до 20 В
- Блокировка при пониженном напряжении для обоих каналов
- CMOS-входы с триггером Шмитта и подтяжкой к земле
- Выходы синфазны входам (IRS2117 и IRS21171)
- Выходы противофазны входам (IRS2118)
IRS2117 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Case/Package | PDIP-8 |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
Order guide
-
TT in advance (bank transfer), Western Union, Credit card,
PayPal. Customer is responsible for shipping fee, bank
charges, duties and taxes.
-
- You can choose whether shipping charges will be charged through your shipping account or by us.
- Please confirm with the logistics company in advance for remote areas.
(Additional charges ($35-$50) may apply for delivery in these areas)
- Delivery date: usually 2 to 7 working days.
- A tracking number will be sent after your order ships.
- - Carefully inspected and packed by ManyChip warehouse - Vacuum packaging - Anti-static packaging - Shockproof foam
- The terms here are for reference only, the actual terms are subject to the sales quotation. - Please confirm product specifications when ordering. - MOQ refers to the minimum order quantity required to purchase each part. - If you have special ordering instructions, please indicate them on the ordering page. - Inspection (PSI) will be performed prior to shipment.
- - Income Quality Control (IQC), 1000+ qualified dealers. - Chips are tested by authoritative organizations to ensure the quality, authenticity and safety of your device. - Decapsulation control - X-ray control - XRF inspection - Electrical testing - Surface testing -Digital components warehouse, covering an area of 800 square meters, with constant temperature and humidity
