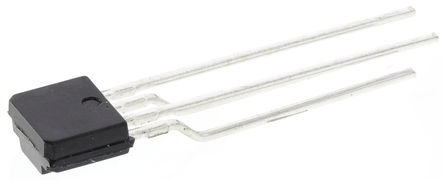

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This is an infrared detector with an integral modulation drive. An external infrared emitter is sync-modulated using a two-wire system. External interference is eliminated by use of a comparator and sync-detector circuit, the resulting signal then being demodulated and output as TTL. The elimination of unwanted signals being detected make this device ideal for use in high ambient light conditions. Suitable for use with all infrared LED emitters.
- Compact Integrated I/R detector
- Impervious to external disturbing lights due to light modulation system
- Built in pulse driver circuit and sync detector circuit on the emitter side
IS471FE Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | Radial - 4 Leads |
| Supply Voltage (DC) | 12.0 V, 16.0 V (max) |
| Voltage Rating (DC) | 5 V |
| Operating Voltage | 4.5VDC ~ 16VDC |
| Output Current | 50 mA |
| Number of Positions | 4 Position |
| Wavelength | 940 nm |
| Peak Wavelength | 940 nm |
| Power Dissipation | 250 mW |
| Rise Time | 400 µs |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage (Max) | 16 VDC |
| Supply Voltage (Min) | 4.5 VDC |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 2.5 mm |
| Size-Height | 4.9 mm |
| Lead Length | 15.5 mm |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
