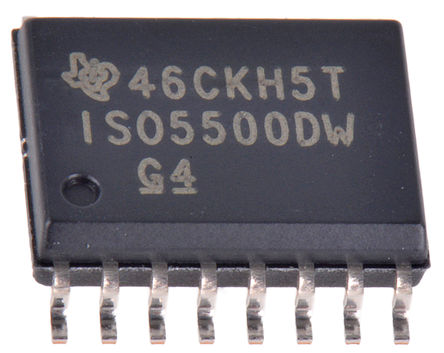

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO5500DW is a 2.5A isolated IGBT/MOSFET Gate Driver features input TTL logic and output power stage are separated by a capacitive, silicon dioxide (SiO2), isolation barrier. When used in conjunction with isolated power supplies, the device blocks high voltage, isolates ground and prevents noise currents from entering the local ground and interfering with or damaging sensitive circuitry. The device provides over-current protection (DESAT) to an IGBT or MOSFET while an Under-voltage Lockout circuit (UVLO) monitors the output power supply to ensure sufficient gate drive voltage. If the output supply drops below 12V, the UVLO turns the power transistor off by driving the gate drive output to a logic low state. For a DESAT fault, the ISO5500 initiates a soft shutdown procedure that slowly reduces the IGBT/MOSFET current to zero while preventing large di/dt induced voltage spikes.
Capacitive isolated fault feedback
300ns Maximum propagation delay
Soft IGBT turnoff Integrated fail-safe IGBT protection
Under-voltage lockout (UVLO) protection with hysteresis
±50kV/µs Typical transient immunity
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

ISO5500DW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	3.00V (min)
Rise/Fall Time	55ns, 10ns
Number of Outputs	1 Output
Output Current	2.5 A
Number of Channels	1 Channel
Number of Positions	16 Position
Power Dissipation	592 mW
Rise Time	55 ns
Isolation Voltage	4243 Vrms
Output Current (Max)	2.5 A
Fall Time	10 ns
Fall Time (Max)	10 ns
Fall Time (Max)	55 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	592 mW
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	3 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
