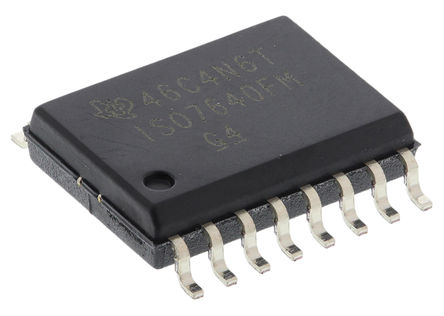

ISO7640FMDW - TI
Manufacturer:
TI
ManyChip's Part#:
MC15536157
Category:
Interface Isolator, Digital Isolator
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS ISO7640FMDW Digital Isolator, Quad, 4Channel, 8.5ns, 2.7V, 5.5V, SOIC, 16Pins
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 7.16

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ISO7640FMDW is a quad channel 150Mbps Digital Isolator provides galvanic isolation up to 6kVPK for 1 minute per UL and VDE. This device is certified up to 5kVRMS Reinforced isolation at a working voltage of 400VRMS per end equipment standards EN/UL/CSA 60950-1 and 61010-1. ISO7640F and ISO7641F are quad-channel isolators, ISO7640F has four forward and one reverse-direction channels. Suffix F indicates that output defaults to low-state in fail-safe conditions. M-grade device is high-speed isolator capable of 150Mbps data rate with fast propagation delays. Each isolation channel has a logic input and output buffer separated by a silicon dioxide (SiO2) insulation barrier. Used in conjunction with isolated power supplies, these devices prevent noise currents on a data bus or other circuits from entering the local ground and interfering with or damaging sensitive circuitry. The device has TTL input thresholds.
7ns Typical low propagation delay
Output defaults to low-state in fail- safe mode
CQC Reinforced insulation per GB4943.1- 2011
Long life with SiO2 isolation barrier
50kV/µs Typical transient immunity
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

ISO7640FMDW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	2.70 V, 3.30 V, 5.00 V
Rise/Fall Time	1.6ns, 1ns
Supply Current	2.00 mA
Number of Channels	4 Channel
Number of Positions	16 Position
Power Dissipation	399 mW
Data Rate	150 Mbps
Rise Time	2.3 ns
Isolation Voltage	4243 Vrms
Thermal Shutdown	No
Input Current (Min)	10 μA
Fall Time (Max)	1.3 ns
Fall Time (Max)	2 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	399 mW
Supply Voltage	2.7V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
