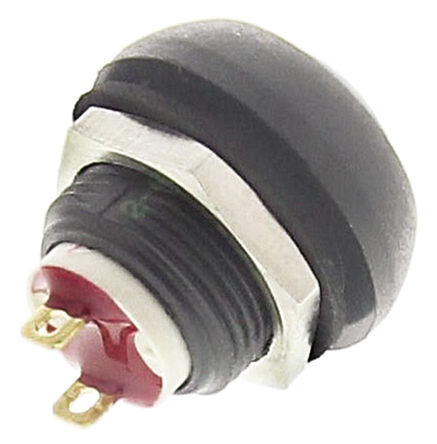

Image is for your reference only,please check specifications for details

ISR3SAD100 - Apem Components
Manufacturer:
Apem Components
ManyChip's Part#:
MC22143903
Category:
Pushbutton Switch, Switch Push button
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Switch Push Button N.O. SPST Round Curved Button 0.4A 32VAC 48VDC Momentary Contact Solder Lug
Stock Locations:
Availability:
201 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IS series sealed momentary Pushbutton Switch with gold-plated silver contacts. It is made of thermoplastic case with polyamide 6/6 actuator.
Snap-in and threaded bushing
Compact and lightweight
Behind-panel depth of 13mm
50% reduction in weight compared to metallic models
Tactile feedback
Sealed to IP54
UL94-V0 Flammability rating

Show

ISR3SAD100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel, Solder Lug
Case/Package	-
Contact Plating	Gold
Voltage Rating (DC)	50 V
Actuator Type	Button
Voltage Rating (AC)	32 V
Current Rating	0.125 A
Number of Rows	1 Row
Orientation	Vertical
Contacts Type	SPST
Contact Resistance	50.0 mΩ
Contact Current Rating	400mA @32VAC
Current Rating (Max)	0.4 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	125 VAC
Maximum Contact Resistance (Max)	50 mΩ
	Show
Size-Height	20 mm
Color	Blue
Contact Material	Silver
Operating Temperature	-40℃ ~ 85℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
HTS Code	8536509031
ECCN Code	EAR99
