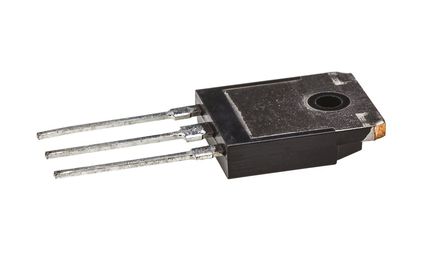

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXFB50N80Q2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	150 mΩ
Power Dissipation	890 W
Drain to Source Voltage (Vds)	800 V
Breakdown Voltage (Drain to Source)	800 V
Rise Time	25 ns
Input Capacitance (Ciss)	7200pF @25V(Vds)
Fall Time	13 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1135W (Tc)
	Show
Size-Length	20.29 mm
Size-Width	5.31 mm
Size-Height	26.59 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
