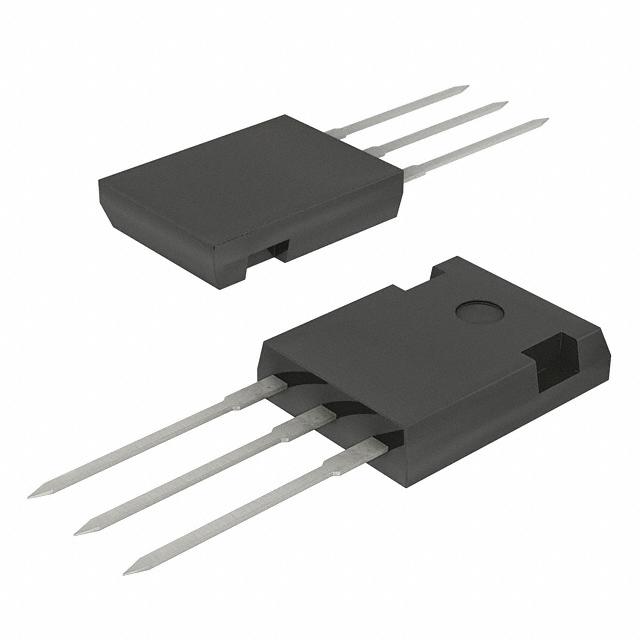

Image is for your reference only,please check specifications for details

IXFH12N100 - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC45734860
Category:
High Voltage MOS Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Single N-Channel 1000V 300W 155NC 12A Surface Mount Power Mosfet - TO-247AD
Stock Locations:
Availability:
27 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.76

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXFH12N100 is a 1000V N-channel Enhancement Mode Power MOSFET with fast intrinsic diode (HiPerFET™) and low RDS (on) HDMOS™ process. The IXYS most popular power MOSFET (HiPerFET™) is for both hard switching and resonant mode applications. This MOSFET offers low gate charge and excellent ruggedness with a fast intrinsic diode.
Rugged polysilicon gate cell structure
Unclamped Inductive Switching (UIS) rated
Low inductance offers easy to drive and protect
Fast intrinsic rectifier
Space-saving s
High power density

Show

IXFH12N100 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	1.00 kV
Current Rating	12.0 A
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	1.05 Ω
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	4.5 V
Drain to Source Voltage (Vds)	1 kV
Continuous Drain Current (Ids)	12.0 A
Rise Time	33 ns
Input Capacitance (Ciss)	4000pF @25V(Vds)
Fall Time	32 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
