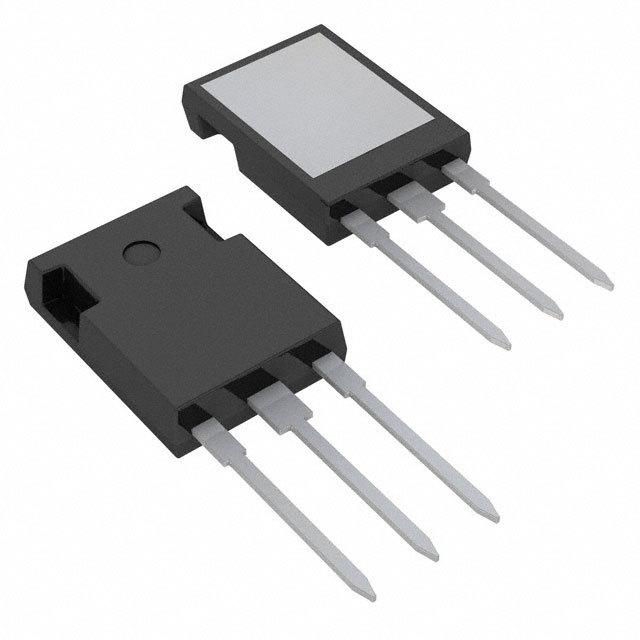

Image is for your reference only,please check specifications for details

IXFR140N30P - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC66451650
Category:
MOSFET, MOSFET Transistor
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
Single N-Channel 300V 300W 185NC Through Hole Power Mosfet - ISOPLUS247
Stock Locations:
Availability:
270 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 20.97

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXFR140N30P is a Polar™ single N-channel enhancement-mode Power MOSFET with fast intrinsic diode (HiPerFET™). It features reduced static drain-to-source ON-resistance and high power density.
Silicon chip on direct-copper-bond substrate - High power dissipation and isolated mounting surface
Unclamped inductive switching (UIS) rating
Low package inductance - Easy to drive and to protect
Easy to mount
Space saving
2500V Electrical isolation voltage

Show

IXFR140N30P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.026 Ω
Polarity	N-Channel
Power Dissipation	360 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	300 V
Continuous Drain Current (Ids)	82.0 A
Isolation Voltage	2.50 kV
Input Capacitance (Ciss)	14800pF @25V(Vds)
Input Power (Max)	300 W
Operating Temperature (Max)	150 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
