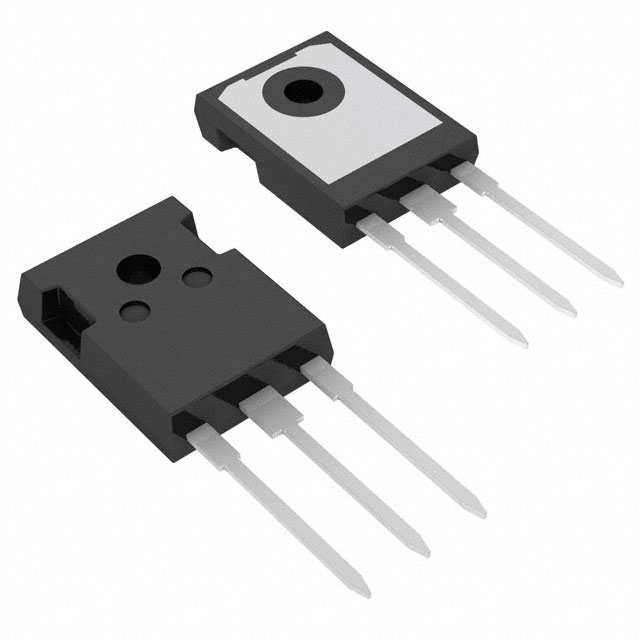

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This IXGH32N170A IGBT transistor from Ixys Corporation will work perfectly in your circuit. Its maximum power dissipation is 350000 mW. It has a maximum collector emitter voltage of 1700 V. It is made in a single configuration. This IGBT transistor has an operating temperature range of -55 °C to 150 °C.

Show

IXGH32N170A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	1.70 kV
Current Rating	75.0 A
Power Dissipation	350000 mW
Rise Time	57.0 ns
Breakdown Voltage (Collector to Emitter)	1700 V
Input Power (Max)	350 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	350000 mW
	Show
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
