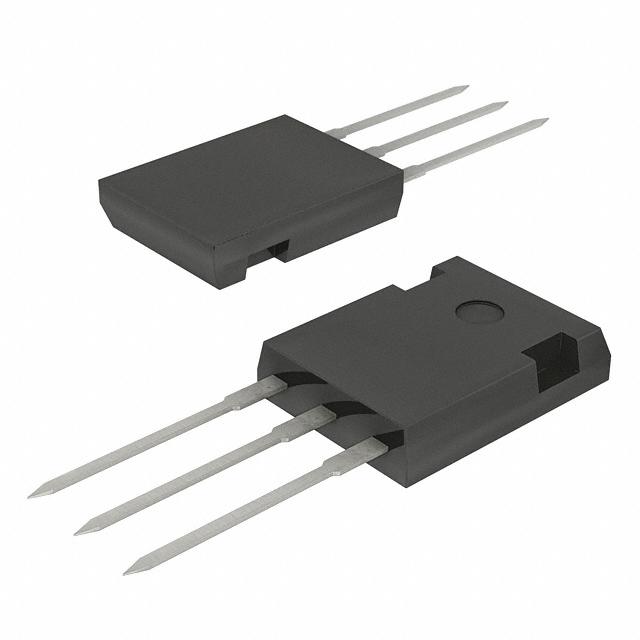

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel Enhancement Mode
- Features
- International standard packages
- Low RDS (on)HDMOS™ process
- Rugged polysilicon gate cell structure
- Low package inductance (< 5 nH)
- \- easy to drive and to protect
- Fast switching times
- Applications
- Switch-mode and resonant-mode power supplies
- Motor controls
- Uninterruptible Power Supplies (UPS)
- DC choppers
IXTH21N50 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Power Rating | 300 W |
| Polarity | N-CH |
| Power Dissipation | 300 W |
| Drain to Source Voltage (Vds) | 500 V |
| Continuous Drain Current (Ids) | 21A |
| Input Capacitance (Ciss) | 4200pF @25V(Vds) |
| Input Power (Max) | 300 W |
| Power Dissipation (Max) | 300W (Tc) |
| Show | |
| Material | Silicon |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
