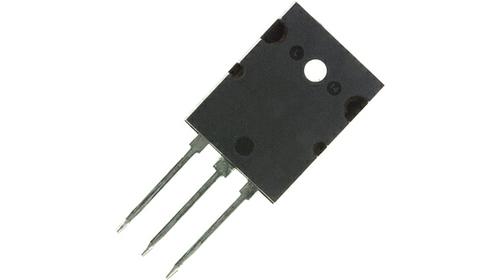

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IXTK180N15P is a Polar™ single N-channel enhancement-mode standard Power MOSFET offers low reduced static drain-to-source ON-resistance and high power density.
International standard packages
Avalanche rating
Low package inductance
Fast intrinsic diode
Dynamic dV/dt rating
Low Qg
Easy to mount
Space saving

Show

IXTK180N15P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	10 mΩ
Polarity	N-Channel
Power Dissipation	800 W
Threshold Voltage	5 V
Drain to Source Voltage (Vds)	150 V
Continuous Drain Current (Ids)	180 A
Rise Time	32 ns
Reverse recovery time	150 ns
Input Capacitance (Ciss)	7000pF @25V(Vds)
Input Power (Max)	800 W
Fall Time	36 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	800W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
