Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Through Hole |
Number of Pins | 3 Pin |

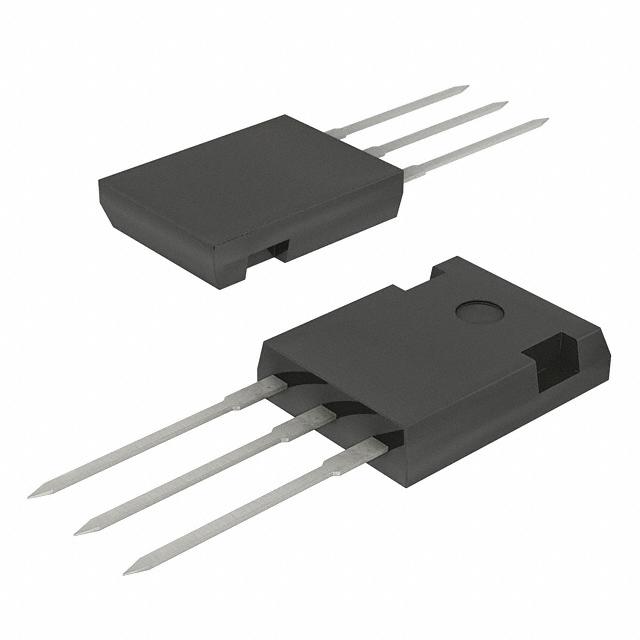

Case/Package | TO-247-3 |
Number of Channels | 1 Channel |
Drain to Source Resistance (on) (Rds) | 44 mΩ |
Polarity | P-CH |
Power Dissipation | 890 W |
Threshold Voltage | 4 V |
Drain to Source Voltage (Vds) | 200 V |
Breakdown Voltage (Drain to Source) | 200 V |
Continuous Drain Current (Ids) | 90A |
Rise Time | 60 ns |
Input Capacitance (Ciss) | 12000 pF |
Fall Time | 28 ns |
Operating Temperature (Max) | 150 ℃ |
Operating Temperature (Min) | 55 ℃ |
Power Dissipation (Max) | 890W (Tc) |
Show | |
Size-Length | 16.13 mm |
Size-Width | 5.21 mm |
Size-Height | 21.34 mm |
Operating Temperature | -55℃ ~ 150℃ (TJ) |
Product Lifecycle Status | Active |
Packaging | Tube |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
