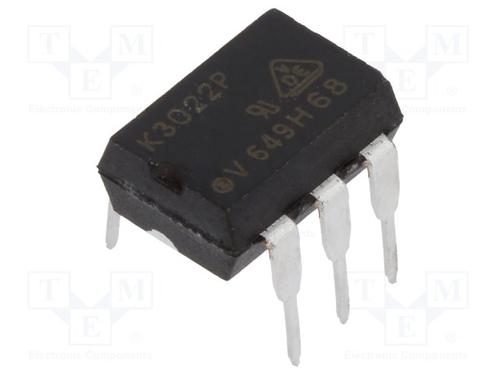

Image is for your reference only,please check specifications for details
- K3022P - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC13521874
-
Category:Optocoupler, Optoisolator
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Optocoupler, Triac Output, DIP, 6Pins, 5.3kV, Non Zero Crossing, 400V
-
Stock Locations:
-
Availability:2,471 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.18
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
K3022P Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Voltage Rating (DC) | 400 V |
| Output Voltage | 400 V |
| Output Current | 0.1 A |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.3 V |
| Input Current | 50.0 mA |
| Power Dissipation | 0.35 W |
| Isolation Voltage | 5.3 kV |
| Holding Current | 200 µA |
| Forward Current | 80 mA |
| Output Voltage (Max) | 280 VAC |
| Reverse Breakdown Voltage | 5 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 80 mA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 350 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
