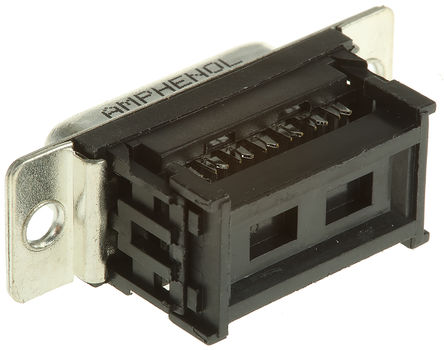

L17DAFRA15S - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC10590686
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Datasheet:
Datasheet 3D Model
Description:
Conn D-Subminiature SKT 15POS 2.74mm IDT RA Cable Mount 15 Terminal 1Port
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L17DAFRA15S is a 15-position standard D-sub Receptacle with gold-plated brass contacts, tin over nickel-plated steel shell and a glass-filled thermoplastic insulator. This connector is suitable for compact requirement of modern peripheral equipment.
250VAC at 60Hz Voltage rating
5A Current rating
1000VAC at 60Hz for one minute Dielectric withstanding voltage
1000MR Insulation resistance
20mR Maximum contact resistance

Show

L17DAFRA15S Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	15 Pin
Number of Contacts	15 Contact
Gender	Female
Contact Plating	Gold Flash
Current Rating	5 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Number of Positions	15 Position
Current Rating (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 V
Operating Voltage (Max)	250 VAC
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	39.24 mm
Size-Width	17.48 mm
Size-Height	12.55 mm
Color	Black
Contact Material	Phosphor Bronze
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
