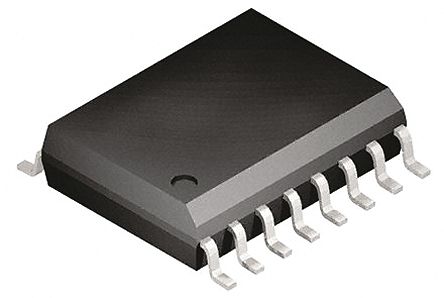

- L4971D013TR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC14925740
-
Category:Voltage Regulator
-
Package:SO-Wide-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 8V to 55V Step Down Single-Out 3.3V to 50V 1.5A 16Pin SO W T/R
-
Stock Locations:
-
Availability:1,100 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 3.03
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The L4971D013TR is a step-down monolithic power Switching Regulator delivering 1.5A at a voltage between 3.3 and 50V (selected by a simple external divider). Realized in BCD mixed technology, the device uses an internal power D-MOS transistor (with a typical Rdson of 0.25R) to obtain very high efficiency and high switching speed. A switching frequency up to 300kHz is achievable. A wide input voltage range between 8 to 55V and output voltages regulated from 3.3 to 50V cover the majority of today"s applications. Features of this new generation of DC-to-DC converter include pulse-by-pulse current limit, hiccup mode for short-circuit protection, voltage feed-forward regulation, soft-start, protection against feedback loop disconnection, inhibit for zero current consumption and thermal shutdown.
- Protection against feedback disconnection
- Inhibit for zero current consumption
- Soft-start function
- Zero load current operation
- Precise 3.3V (±1%) internal reference voltage
- Internal current limiting (pulse-by pulse and hiccup mode)
L4971D013TR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SO-Wide-16 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3V ~ 50V |
| Output Current | 1.5 A |
| Number of Positions | 16 Position |
| Power Dissipation | 800 mW |
| Quiescent Current | 4 mA |
| Switching Frequency | 300 kHz |
| Topology | Buck |
| Input Voltage (Max) | 55 V |
| Input Voltage (Min) | 8 V |
| Output Voltage (Max) | 50 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 1.5 A |
| Output Current (Min) | 200 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 8 V |
| Supply Voltage (Min) | 8 V |
| Input Voltage | 8V ~ 55V |
| Show | |
| Size-Length | 10.5 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
