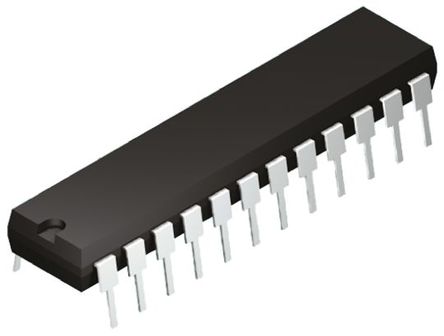

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The L6227 is a DMOS Dual Full Bridge designed for motor control applications, realized in MultiPower BCD technology, which combines isolated DMOS Power Transistors with CMOS and bipolar circuits on the same chip. The device also includes two inde pendent constant off time PWM Current Controllers that performs the chopping regulation. Available in Power DIP24 (20+2+2), PowerSO36 and SO24 (20+2+2) packages, the L6227 features a non-dissipative overcurrent protection on the high side Power MOSFETs and thermal shutdown.
■OPERATING SUPPLY VOLTAGE FROM 8 TO 52V
■2.8A OUTPUT PEAK CURRENT (1.4A DC)
■RDS(ON)0.73ΩTYP. VALUE @ Tj= 25 °C
■OPERATING FREQUENCY UP TO 100KHz
■NON DISSIPATIVE OVERCURRENT PROTECTION
■DUAL INDEPENDENT CONSTANT tOFF PWM CURRENT CONTROLLERS
■SLOW DECAY SYNCHRONOUS RECTIFICATION
■CROSS CONDUCTION PROTECTION
■THERMAL SHUTDOWN
■UNDER VOLTAGE LOCKOUT
■INTEGRATED FAST FREE WHEELING DIODES
TYPICAL APPLICATIONS
■BIPOLAR STEPPER MOTOR
■DUAL DC MOTOR
