Description

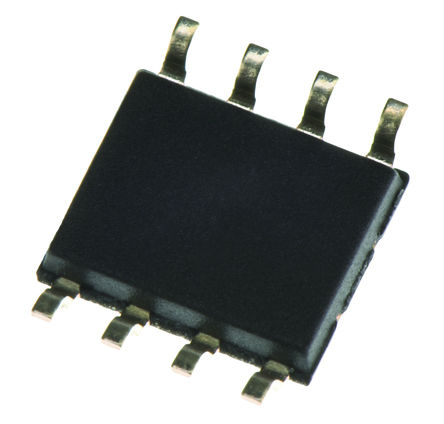

Use this L6388ED013TR power driver from STMicroelectronics to power your transistors. This device has a maximum propagation delay time of 300 ns and a maximum power dissipation of 750 mW. Its maximum power dissipation is 750 mW. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This gate driver has a minimum operating temperature of -45 °C and a maximum of 125 °C. This device has a maximum of 17 V.

Show

L6388ED013TR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	0.4 MHz
Power Rating	0.75 W
Rise/Fall Time	70ns, 40ns
Number of Outputs	2 Output
Output Current	650 mA
Supply Current	0.45 mA
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	125 Ω
Power Dissipation	0.75 W
Quiescent Current	450 µA
Rise Time	100 ns
Output Current (Max)	0.65 A
Fall Time	80 ns
Fall Time (Max)	80 ns
Fall Time (Max)	100 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-45 ℃
Power Dissipation (Max)	750 mW
Supply Voltage	17 V
Supply Voltage (Max)	17 V
Supply Voltage (Min)	0.3 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
