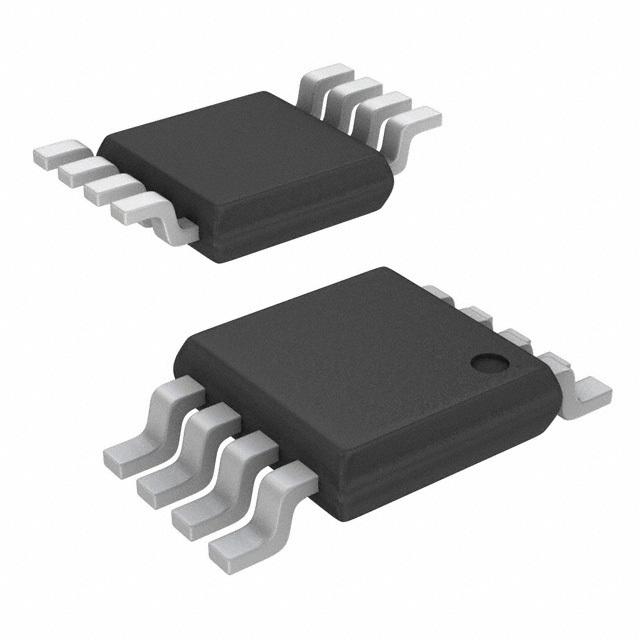

Image is for your reference only,please check specifications for details
- L6920DCTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC31491200
-
Category:DC to DC Converter
-
Package:MSOP-8
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 0.8V to 5.5V Step Up Single-Out 1.8V to 5.5V 0.45A 8Pin MSOP T/R
-
Stock Locations:
-
Availability:247 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.01
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step up L6920DCTR DC to DC converter from STMicroelectronics. This converter"s single output can produce a current up to 0.45 A. By only needing an input voltage of 0.8 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1.8 to 5.5 V, this is power management at its best. This part offers a switching frequency of 1000 kHz in order to work properly. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a maximum operating temperature of 150 °C.
L6920DCTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | MSOP-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.8V ~ 5.5V |
| Output Current | 0.45 A |
| Number of Positions | 8 Position |
| Quiescent Current | 15 µA |
| Switching Frequency | 1000 kHz |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 0.8 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 1.8 V |
| Output Current (Max) | 0.45 A |
| Operating Temperature (Max) | 150 ℃ |
| Input Voltage | 5.5 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
