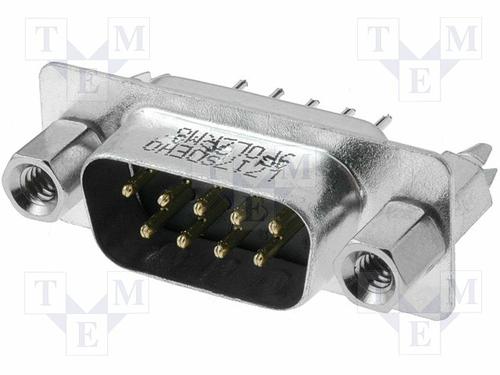

Image is for your reference only,please check specifications for details

L717SDEH09POL2RM8 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC16271365
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Datasheet:
Datasheet 3D Model
Description:
Conn D-Subminiature PIN 9POS 2.74mm Solder ST Thru-Hole 9 Terminal 1Port
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

L717SDEH09POL2RM8 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	9 Pin
Number of Contacts	9 Contact
Gender	Male
Contact Plating	Gold Flash
Current Rating	5 A
Insulation Resistance	1000 MΩ
Number of Rows	2 Row
Orientation	Straight
Number of Positions	9 Position
Current Rating (Max)	5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	250 VAC
Voltage Rating	250 V
Operating Voltage (Max)	250 VAC
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	30.84 mm
Size-Width	12.55 mm
Size-Height	12.7 mm
Color	Black
Contact Material	Brass
Operating Temperature	-55℃ ~ 125℃
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
