L77DE09SST - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC12280079
Category:
D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
Package:
Metal
Datasheet:
Datasheet 3D Model
Description:

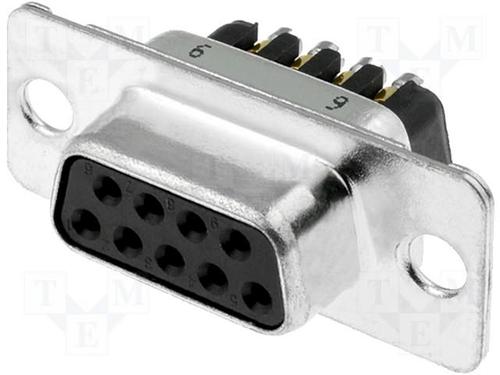

Conn D-Subminiature F 9POS 2.74mm Screw ST Cable Mount 9 Terminal 1Port
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/04/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L77DE09SST is a 9-way standard female D-sub Connector with gold-plated machined brass contacts. The D-ST series D-sub connector has DE-size tin-plated steel shell and a glass filled thermoplastic insulator. The screw termination D-sub series is especially designed for field applications.
7.5A Current rating
300VAC at 50Hz Voltage rating
1000VAC at 50Hz for one minute Dielectric withstanding voltage
>5000MR at 500VDC Insulation resistance
<5mR Maximum contact resistance

Show

L77DE09SST Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	9 Pin
Case/Package	Metal
Number of Contacts	9 Contact
Gender	Female
Wire Gauge	18 AWG
Contact Plating	Gold over Nickel
Voltage Rating (AC)	300 V
Current Rating	7.5 A
Insulation Resistance	5000 MΩ
Number of Rows	2 Row
Flammability Rating	UL 94 V-0
Number of Positions	9 Position
Contact Resistance	5.00 mΩ
Number of Mating Cycles	100 Cycle
Current Rating (Max)	7.5 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating (Max)	300 VAC
Voltage Rating	300 V
Operating Voltage (Max)	300 VAC
Maximum Contact Resistance (Max)	5 mΩ
	Show
Size-Length	30.43 mm
Size-Width	18.55 mm
Size-Height	12.17 mm
Color	Black
Contact Material	Brass
Material	Steel
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
