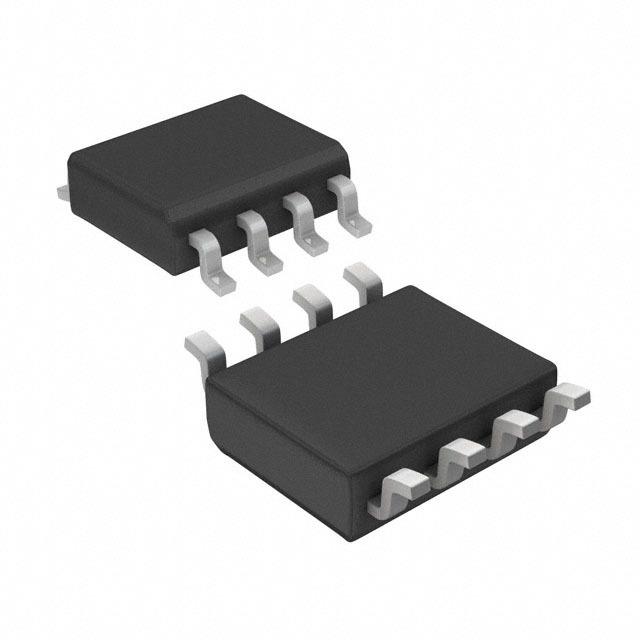

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The L78L05ABD three terminal positive regulator employs internal current limiting and thermal shutdown, making it essentially indestructible. If adequate heat sink is provided, it can deliver up to 100mA output current. the L78L05ABD is intended as fixed voltage regulators in a wide range of applications including local or on card regulation for elimination of noise and distribution problems associated with single point regulation. In addition, this device can be used with power pass elements to make high current voltage regulators.
Output current up to 100mA
Output voltage: 5V
Thermal overload protection
Short circuit Protection
No external components required

Show

L78L05ABD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Voltage (DC)	30.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	20.0V (max)
Output Voltage	5 V
Output Current	100 mA
Number of Positions	8 Position
voltage rating	1.7V @40mA
Input Voltage (Max)	30 V
Input Voltage (Min)	10 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	≤30 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
