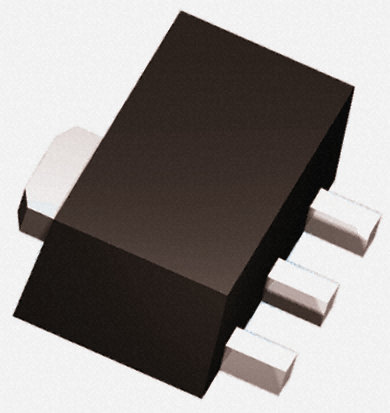

Image is for your reference only,please check specifications for details
- L79L12ACUTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC2919308
-
Category:Voltage Regulator
-
Package:SOT-89-3
-
Datasheet:Datasheet 3D Model
-
Description:Voltage regulator; linear, fixed; -12V; 0.1A; SOT89; SMD; 0÷125℃
-
Stock Locations:
-
Availability:367 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.35
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Description
- The L79Lxx series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current.
- Features
- ■ Output current up to 100 mA
- ■ Output voltages of -5; -6; -8; -9; -12; -15V
- ■ Thermal overload protection
- ■ Short circuit protection
- ■ No external components are required
- ■ Available in either ±5% (AC) or ±10% (C) selection
L79L12ACUTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOT-89-3 |
| Number of Outputs | 1 Output |
| Output Voltage | 12 V |
| Output Current | 100 mA |
| Number of Positions | 3 Position |
| Quiescent Current | 6.5 mA |
| voltage rating | 1.7V @40mA |
| Input Voltage (Max) | 19 V |
| Output Current (Max) | 0.1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Accuracy | ±5 % |
| Show | |
| Size-Length | 4.6 mm |
| Size-Width | 2.6 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | 0℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
