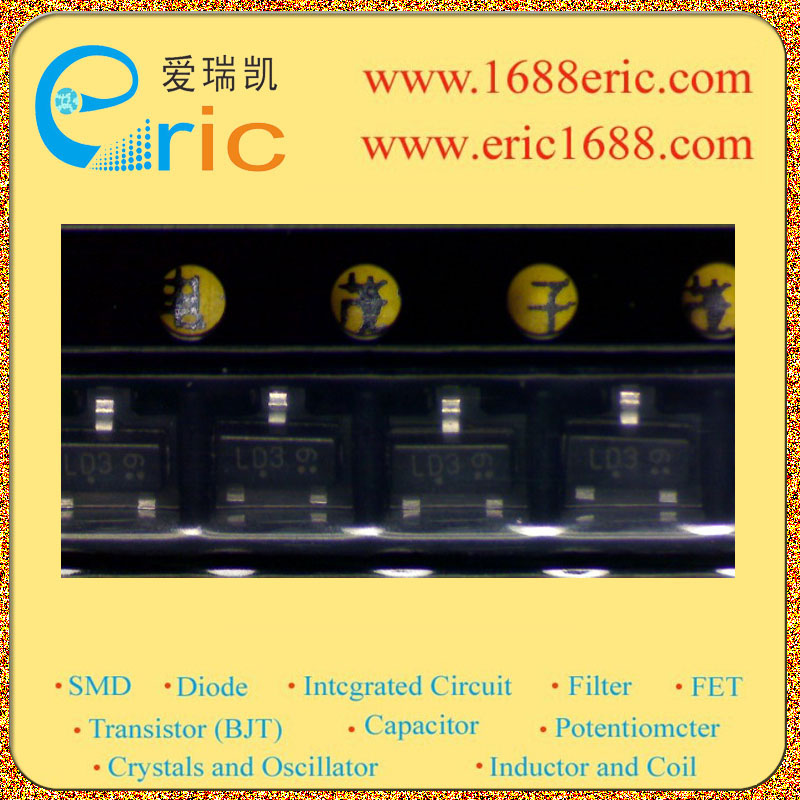

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

• Extremely Fast Switching Speed • Low Forward Voltage — 0.35 Volts (Typ) @ I F = 10 mAdc • Schottky Barrier Diodes in Series

Show

LBAT54SLT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	3 Pin
Case/Package	SOT-23
Forward Voltage	0.4 V
Reverse recovery time	5 ns
Max Repetitive Reverse Voltage (Vrrm)	30V
Forward Current	200 A
Max Reverse Leakage Current (Ir)	2uA
	Show
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Unknown
Minimum Packing Quantity	3000
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
