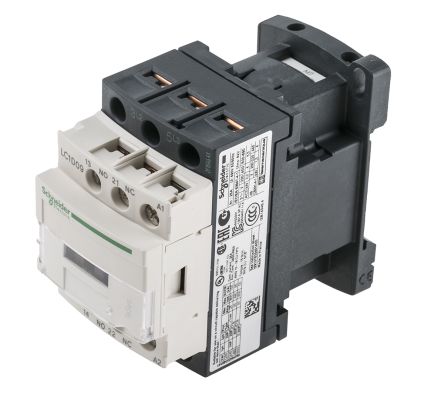

Image is for your reference only,please check specifications for details
- LC1D09M7 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC15833375
-
Category:Industrial Relay
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Contactor; Motor Control; 440VAC; 9A; 3Pole; 220VAC Coil; DIN Rail; TeSys D
-
Stock Locations:
-
Availability:68 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 17.44
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LC1D09M7 is a 3-pole TeSys D Contactor for perfect integration in control systems. TeSys D contactor operates with 220VAC coil. High-fault short circuit current ratings provide the flexibility to select any component, as long as it meets or exceeds the desired SCCR. TeSys D contactors can be placed on DIN rail mounting.
- 3PST - NO contact configuration
- 6kV rated impulse withstand voltage
- 2.5mR at 50Hz average impedance
- Screw clamp connection terminals
LC1D09M7 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Operating Voltage | 600 VAC |
| Current Rating | 9 A |
| Power Rating | 4 kW |
| Contacts Type | 3PST-NO |
| Contact Current Rating | 25 A |
| Coil Voltage | 220 VAC |
| Coil Voltage (AC) | 220 V |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -5 ℃ |
| Voltage Rating | 690VAC, 300VDC |
| Show | |
| Size-Length | 77 mm |
| Size-Width | 45 mm |
| Operating Temperature | -5℃ ~ 60℃ |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
