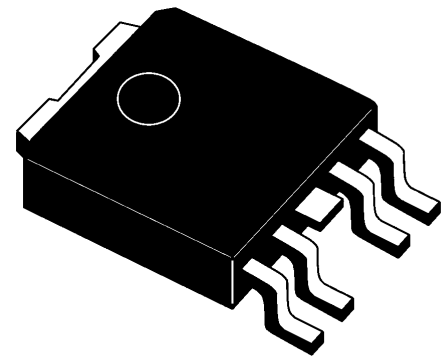

Image is for your reference only,please check specifications for details
- LD29150PT50R - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC43377133
-
Category:Voltage Regulator
-
Package:TO-252-5
-
Datasheet:Datasheet 3D Model
-
Description:LD29150 Series 1.5A 5V Fixed Output SMT LDO Voltage Regulator - PPAK-5
-
Stock Locations:
-
Availability:97 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.72
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Linear Voltage Regulator IC 1 Output 1.5A PPAK
LD29150PT50R Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TO-252-5 |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 13.0V (max) |
| Output Voltage | 5 V |
| Output Current | 1.5 A |
| Number of Positions | 5 Position |
| Quiescent Current | 15 mA |
| voltage rating | 0.4V @1.5A |
| Input Voltage (Max) | 30 V |
| Output Current (Max) | 1.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±1 % |
| Input Voltage | ≤14 V |
| Show | |
| Size-Length | 6.6 mm |
| Size-Width | 6.2 mm |
| Size-Height | 2.4 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
