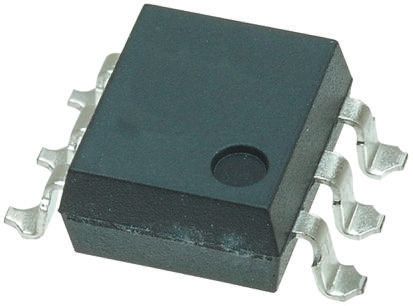

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LH1540AAB is a SMD Solid State Relay constructed using a GaAIAs LED for actuation control and an integrated monolithic die for the switch output. This robust relay is ideal for telecom and ground fault applications. It is SPST normally-open switch (form A) that replaces electromechanical relay in many applications. The die is fabricated in a high-voltage dielectrically isolated technology, is comprised of a photodiode array, switch control circuitry and MOSFET switches. In addition it employs current-limiting circuitry which meets lightning surge testing as per ANSI/TIA-968-B and other regulatory voltage surge requirements when overvoltage protection is provided.
- Current limit protection
- High surge capability
- Clean bounce free switching
- Low power consumption
LH1540AAB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | PDIP-6 |
| Output Voltage | 0V ~ 350V |
| Output Current | 120 mA |
| Contacts Type | SPST-NO |
| Load Current | 120 mA |
| Input Current | 50 mA |
| Power Dissipation | 550 mW |
| Resistance | 20.0 Ω |
| Isolation Voltage | 5300 v |
| Forward Current | 1 mA |
| Input Voltage (Max) | 1.45 V |
| Input Voltage (Min) | 1.15 V |
| Output Voltage (Max) | 350 V |
| Output Current (Max) | 0.12 A |
| Input Current (Min) | 50 mA |
| Load Current (Max) | 0.12 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 550 mW |
| Input Voltage | 1.26 VDC |
| Show | |
| Size-Length | 8.7 mm |
| Size-Height | 3.81 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
