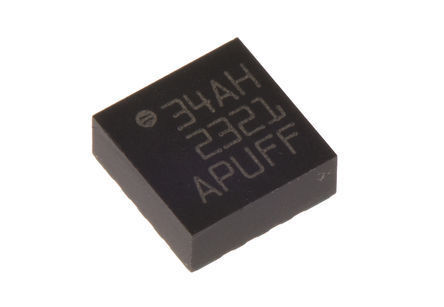

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LIS3MDL is an ultra-low-power high-performance three-axis Magnetic Sensor. It has user-selectable full scales of ±4/ ±8/ ±12/ ±16 gauss. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals for magnetic field detection. It includes an I²C serial bus interface that supports standard and fast mode (100 and 400kHz) and SPI serial standard interface.
Independent IO Supply (1.8V)
±4/±8/±12/±16 Gauss Selectable Magnetic Full Scale
Continuous and Single-conversion Modes
16-bit Data Output
Interrupt Generator
Self-test
I²C/SPI Digital Output Interface
Power-down Mode/Low-power Mode
Green Product
ESD sensitive device, take proper precaution while handling the device, device is sensitive to magnetic fields, improper handling can cause permanent damage to the part.

Show

LIS3MDLTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	12 Pin
Case/Package	LGA-12
Supply Voltage (DC)	1.90V (min)
Number of Positions	12 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.9V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.9 V
Input Voltage	1.9.3.6 V
	Show
Size-Length	2.15 mm
Size-Width	2.15 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
HK STC License	NLR
