Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 5 Pin |

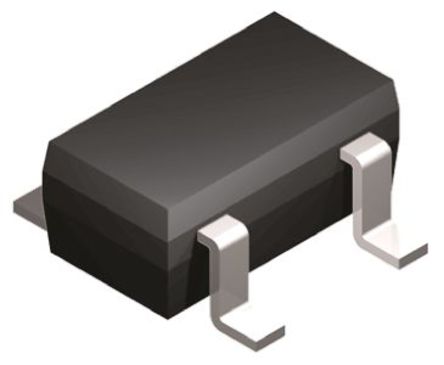

Case/Package | SOT-23-5 |
Number of Outputs | 1 Output |
Input Voltage (DC) | 11.0V (max) |
Output Voltage | 5 V |
Output Current | 200 mA |
Supply Current | 250 µA |
Number of Positions | 5 Position |
Quiescent Current | 0.175 mA |
voltage rating | 0.35V @200mA |
Input Voltage (Max) | 14 V |
Input Voltage (Min) | 5.5 V |
Output Voltage (Min) | 5 V |
Output Current (Max) | 200 mA |
Operating Temperature (Max) | 125 ℃ |
Operating Temperature (Min) | -40 ℃ |
Accuracy | ±2 % |
Input Voltage | ≤14 V |
Show | |
Size-Length | 3 mm |
Size-Width | 1.75 mm |
Size-Height | 1.3 mm |
Operating Temperature | -40℃ ~ 125℃ |
Product Lifecycle Status | Active |
Packaging | Tape & Reel (TR) |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
