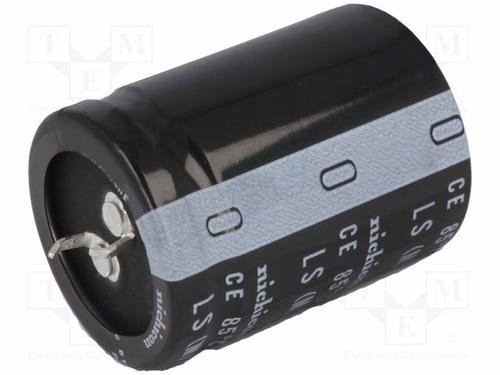

Image is for your reference only,please check specifications for details

LLS1J222MELA - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC11348236
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Snap-In
Datasheet:
Datasheet 3D Model
Description:
2.2mF ±20% 63V Φ25mm 25mm
Stock Locations:
Availability:
9,524 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.21

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LLS1J222MELA is an aluminium Electrolytic Capacitor with snap-in terminals and printed with white colour letter on black sleeve marking. The electrolytic capacitor withstanding 3000hours application of rated ripple current at 85°C.
Anti-solvent (through 100V only)
2300mA Rated ripple current
1.11mA Leakage current

Show

LLS1J222MELA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Snap-In
Pin Pitch	10 mm
Voltage Rating (DC)	63.0 V
Operating Voltage	63 VDC
Capacitance	2200 µF
Capacitance Tolerance	±20 %
Part Family	LLS
Ripple Current	2.3 A
Ripple Current (Low Frequency)	2.3A @120Hz
Ripple Current (High Frequency)	2.645A @50kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	63 V
	Show
Size-Height	25 mm
Size-Diameter	25.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	50
Life (Hours)	3000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
