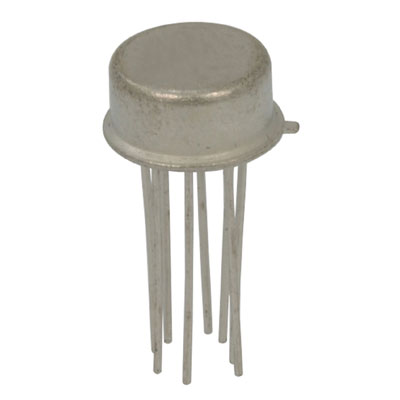

Image is for your reference only,please check specifications for details
- LM111H - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC11160536
-
Category:Comparator, Analog Comparator IC
-
Package:TO-99-8
-
Datasheet:Datasheet 3D Model
-
Description:Analog Comparator, Single, General Purpose, 1, 200ns, 5V to 36V, TO-99, 8Pins
-
Stock Locations:
-
Availability:1,231 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.13
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM111H is a Voltage Comparator designed to operate over a wider range of supply voltages from standard ±15V op-amp supplies down to the single 5V supply used for IC logic. The output is compatible with RTL, DTL and TTL as well as MOS circuits. Further, they can drive lamps or relays, switching voltages up to 50V at currents as high as 50mA. Both the inputs and the outputs of the comparator can be isolated from system ground and the output can drive loads referred to ground, the positive supply or the negative supply. Offset balancing and strobe capability are provided and outputs can be wire OR"ed.
- 150nA Maximum input current
- 20nA Maximum offset current
- 135mW at ±15V Power consumption
- Military rating
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
LM111H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-99-8 |
| Output Current | 50.0 mA |
| Supply Current | 6 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Power Dissipation | 500 mW |
| Input Offset Voltage | 3 mV |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500 mW |
| Supply Voltage | 5V ~ 36V |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Length | 9.14 mm |
| Size-Width | 9.14 mm |
| Size-Height | 4.45 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
