Description
- DESCRIPTION
- The LM118 series are precision high speed operational amplifiers designed for applications requiring wide bandwidth and high slew rate. They feature a factor of ten increase in speed over general purpose devices without sacrificing DC performance.
- FEATURES
- • 15 MHz Small Signal Bandwidth
- • Ensured 50V/μs Slew Rate
- • Maximum Bias Current of 250 nA
- • Operates from Supplies of ±5V to ±20V
- • Internal Frequency Compensation
- • Input and Output Overload Protected
- • Pin Compatible with General Purpose Op Amps

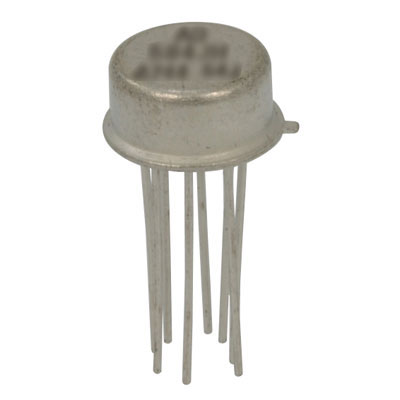

LM118H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-99-8 |
| Output Current | 20 mA |
| Supply Current | 5 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 0.5 W |
| Common Mode Rejection Ratio | 80 dB |
| Input Offset Drift | 3.00 µV/K |
| Slew Rate | 70.0 V/μs |
| Gain Bandwidth Product | 15.0 MHz |
| Input Offset Voltage | 2 mV |
| Input Bias Current | 120 nA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Gain Bandwidth | 15 MHz |
| Power Dissipation (Max) | 500 mW |
| Minimum CMRR Range | 80 dB |
| Supply Voltage (Max) | 40 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Width | 9.14 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
