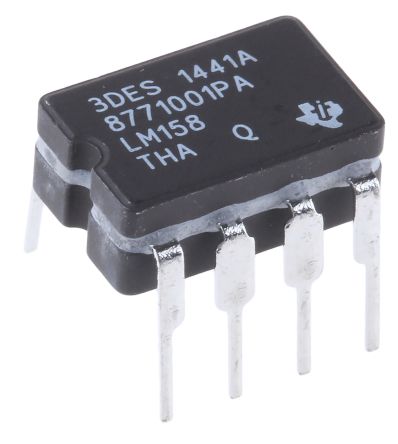

LM158JGB - TI
Manufacturer:
TI
ManyChip's Part#:
MC2400815
Category:
Operational Amplifier, OP Amp IC
Package:
DIP
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM158JGB Operational Amplifier, Dual, 2 Amplifier, 700kHz, 0.3V/µs, ± 1.5V to ± 16V, DIP, 8Pins
Stock Locations:
Availability:
4,421 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 19.47

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM158JGB is a dual general-purpose Operational Amplifier consists of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.
Independent of supply voltage
Wide unity gain bandwidth
Low input bias and offset parameters
100dB Typical open-loop differential voltage gain
Internal frequency compensation
Low supply-current drain
