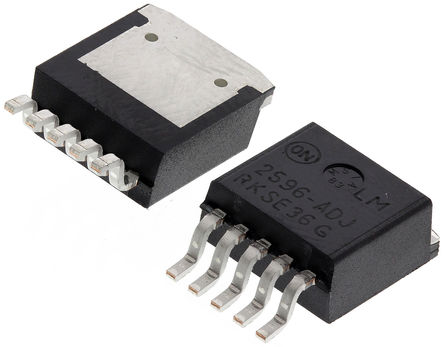

Image is for your reference only,please check specifications for details

LM2596DSADJR4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1591763
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 4.5V to 40V Step Down Single-Out 1.23V to 37V 3A 6Pin(5+Tab) D2PAK T/R
Stock Locations:
Availability:
145 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this step down LM2596DSADJR4G DC to DC converter from ON Semiconductor. This converter"s single output can produce a current up to 3 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 4.5 V that does not exceed 40 V. With an adjustable output that has a voltage of 1.23 to 37 V, this is power management at its best. This converter is 73(typ) % efficient. You can operate this at a switching frequency of 165 kHz. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This converter has a minimum operating temperature of -40 °C and a maximum of 125 °C.

Show

LM2596DSADJR4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.23V ~ 37V
Output Current	3 A
Number of Positions	5 Position
Quiescent Current	10 mA
Switching Frequency	150 kHz
Topology	Step-Down
Input Voltage (Max)	40 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	37 V
Output Voltage (Min)	1.23 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Input Voltage	40 V
	Show
Size-Length	10.24 mm
Size-Width	4.572 mm
Size-Height	9.347 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
