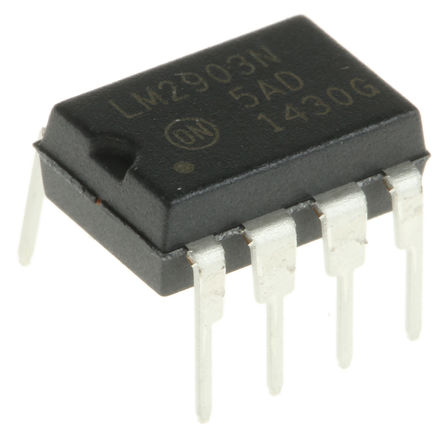

Image is for your reference only,please check specifications for details

LM2903NG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC11222563
Category:
Comparator, Analog Comparator IC
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
LM Series 36V 250nA Through Hole Low Offset Voltage Dual Comparator - PDIP-8
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.44

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2903NG is a low offset voltage dual independent Precision Voltage Comparator capable of single or split supply operation. This device is designed to permit a common mode range-to-ground level with single-supply operation. Input offset voltage specifications as low as 2mV make this device an excellent selection for many applications.
0.4mA Very low current drain independent of supply voltage
Input common mode range to ground level
Differential input voltage range equal to the power supply voltage
Output voltage compatible with DTL, ECL, TTL, MOS and CMOS logic levels
ESD Clamps on the inputs increase the ruggedness of the device without affecting performance

Show

LM2903NG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	2.00V (min)
Halogen Free Status	Halogen Free
Output Current	16mA @5V
Supply Current	0.4 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Power Dissipation	570 mW
Quiescent Current	400 µA
Input Offset Voltage	7 mV
Input Bias Current	25 nA
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	570 mW
Supply Voltage	2V ~ 36V
Supply Voltage (Max)	36 V
Supply Voltage (Min)	2 V
	Show
Size-Length	10.02 mm
Size-Width	6.35 mm
Size-Height	5.33 mm
Operating Temperature	-40℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
