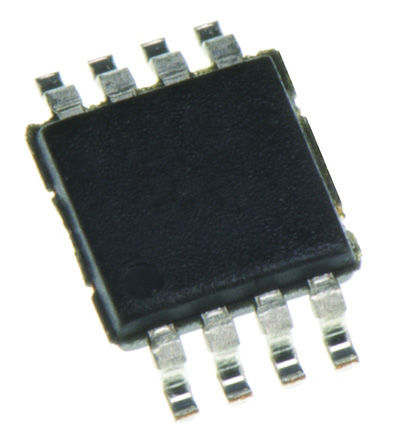

Image is for your reference only,please check specifications for details

LM2904DGKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC851142
Category:
Operational Amplifier, OP Amp IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LM2904DGKR Operational Amplifier, Dual, 700kHz, 2, 0.3V/ s, 3V to 26V, 1.5V to 13V, MSOP, 8
Stock Locations:
Availability:
42,269 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 30/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM2904DGKR is a dual high-gain frequency-compensated Operational Amplifier designed to operate from a single supply or split supply over a wide range of voltages.
Common-mode input voltage range includes ground, allowing direct sensing near ground
Internal frequency compensation
0.7mA Typical low supply-current drain
3mV Typical input offset voltage
2nA Typical input offset current
20nA Typical input bias current
32V Differential input voltage range equal to maximum-rated supply voltage
100dB Typical open-loop differential voltage gain
Green product and no Sb/Br

Show

LM2904DGKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Current	1 mA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	50 dB
Input Offset Drift	7.00 µV/K
Bandwidth	700 kHz
Slew Rate	300 mV/μs
Gain Bandwidth Product	700 kHz
Input Offset Voltage	3 mV
Input Bias Current	20 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	0.7 MHz
Minimum CMRR Range	50 dB
Supply Voltage (Max)	26 V
Supply Voltage (Min)	3 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
