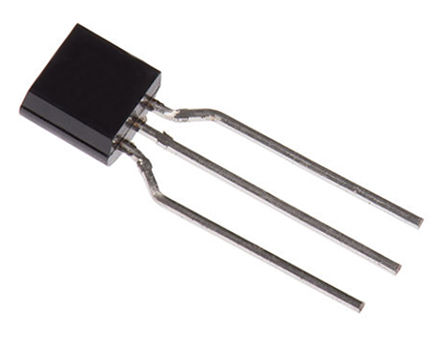

LM2931AZ50R - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC36021437
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
LM2931 Series 100mA 5V Fixed Through Hole VLDO Voltage Regulator - TO-92
Stock Locations:
Availability:
727 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The LM2931xx are very low drop regulators. The very low drop voltage and the low quiescent current make them particular suitable for low noise, low power applications and in battery powered systems. In the 8 pin configuration (SO-8), fully compatible to the older L78Lxx family, a shut down logic control function is available.
Features
■ Very low dropout voltage (0.15 V typ. at 10 mA load)
■ Low quiescent current (typ. 2.5 mA, at 100 mA load)
■ Output current up to 100 mA
■ Adjustable (from VOUT= 2.5 V only SO-8) and fixed (3.3 V & 5 V) output voltage version
■ Internal current and thermal limit
■ Load dump protection up to 60 V
■ Reverse transient protection up to -50 V
■ Temperature range: -40 to 125 °C
■ Package available: TO-92, DPAK, SO-8 (with inhibit control)

Show

LM2931AZ50R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Supply Voltage (DC)	40.0V (max)
Operating Voltage	3.3V ~ 26V
Number of Outputs	1 Output
Input Voltage (DC)	26.0V (max)
Output Voltage	5 V
Output Current	100 mA
Number of Positions	3 Position
Quiescent Current	2.5 mA
voltage rating	250 mV
Input Voltage (Max)	26 V
Input Voltage (Min)	26 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±5 %
Supply Voltage (Max)	40 V
Supply Voltage (Min)	6 V
Input Voltage	≤26 V
	Show
Size-Length	4.95 mm
Size-Width	3.94 mm
Size-Height	4.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
