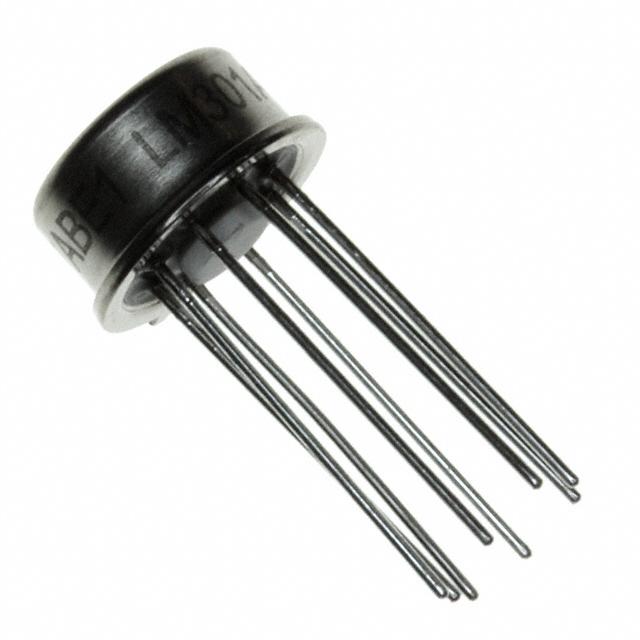

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Purpose Amplifier 1 Circuit TO-99-8
LM301AH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | TO-99-8 |
| Supply Voltage (DC) | 15.0 V |
| Output Current | 25.0 mA |
| Supply Current | 1.8 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Power Dissipation | 0.7 W |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 6.00 µV/K |
| Bandwidth | 100 kHz |
| Slew Rate | 500 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 7.5 mV |
| Input Bias Current | 70 nA |
| Gain Bandwidth | 70 dB |
| Power Dissipation (Max) | 700 mW |
| Minimum CMRR Range | 70 dB |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Box |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
