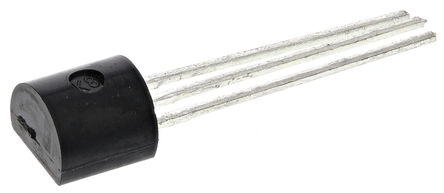

LM336Z5 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC8750282
Category:
Voltage Reference
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
LM336Z5 Series 5V 15mA ±4% Fixed Programmable Shunt Regulator - TO-92-3
Stock Locations:
Availability:
212 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.09

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

LM336Z5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Capacitance Tolerance	±1 %
Output Voltage	5 V
Output Current	400 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Output Voltage (Max)	5.2 V
Output Voltage (Min)	4.8 V
Output Current (Max)	400 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±1 %
Voltage Rating	5 V
	Show
Size-Length	4.58 mm
Size-Width	3.86 mm
Size-Height	4.58 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
