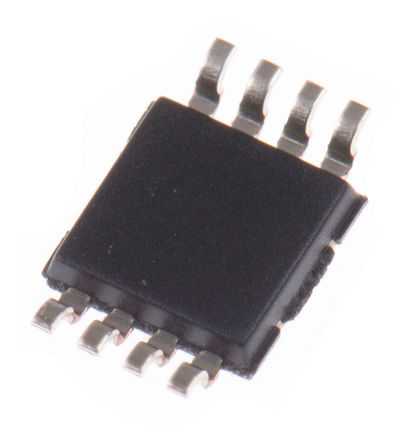

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The LM3401MM is a hysteretic PFET Controller for high power LED drive, designed to provide constant current to high power LEDs. The LM3401 drives an external P-MOSFET switch for step-down (buck) regulators. The LED driver delivers constant current within ±6% accuracy to a wide variety and number of series connected LEDs. Output current is adjusted with an external current sensing resistor to drive high power LEDs in excess of 1A. For improved accuracy and efficiency, this LEDS driver features dual-side hysteresis, very low reference voltage and short propagation delay. A cycle by cycle current limit provides protection against over-current and short circuit failures. Additional features include adjustable hysteresis and a CMOS compatible input pin for PWM dimming.
- Hysteretic control for speed and simplicity
- Programmable current limit
- Input UVLO
- No output capacitor required
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
LM3401MM Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSSOP-8 |
| Frequency | 1.5 MHz |
| Number of Outputs | 1 Output |
| Output Voltage | 35 V |
| Output Current | 410 mA |
| Number of Positions | 8 Position |
| Switching Frequency | 1.5 MHz |
| Input Voltage (Max) | 35 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 33 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 660 mW |
| Supply Voltage (Max) | 35 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.86 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
